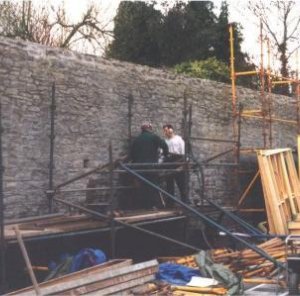

The following pictures show the process of drilling for, installing and grouting the Cintec Ground Anchors. | ![]() Setting up the drilling rig |

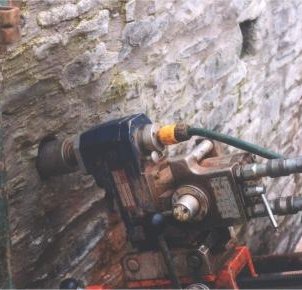

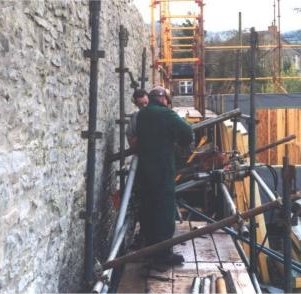

![]() The drilling head |

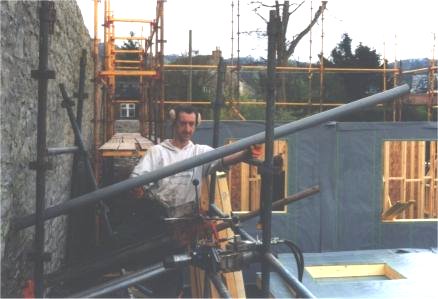

![]() Adding mining barrel extensions |
![]() Mining barrel extensions |
![]() Drill head at full depth |

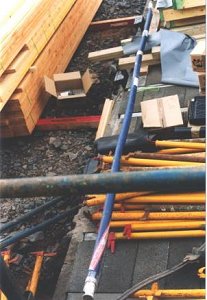

![]() Inserting plastic tube liner to the drilled hole |

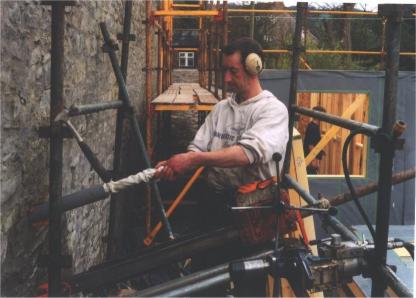

![]() Cintec anchor in its packing protects until needed |
![]() Removing anchor from the packing |
![]() Ready to insert anchor |
![]() Carefully placing the anchor |
![]() Making sure the sock is not bunched up at the end |
![]() Final few feet going in |
![]() Extracting the tube liner |
![]() Removing the tube liner |
![]() Grouting the anchor |
